Control Cabinet I/O

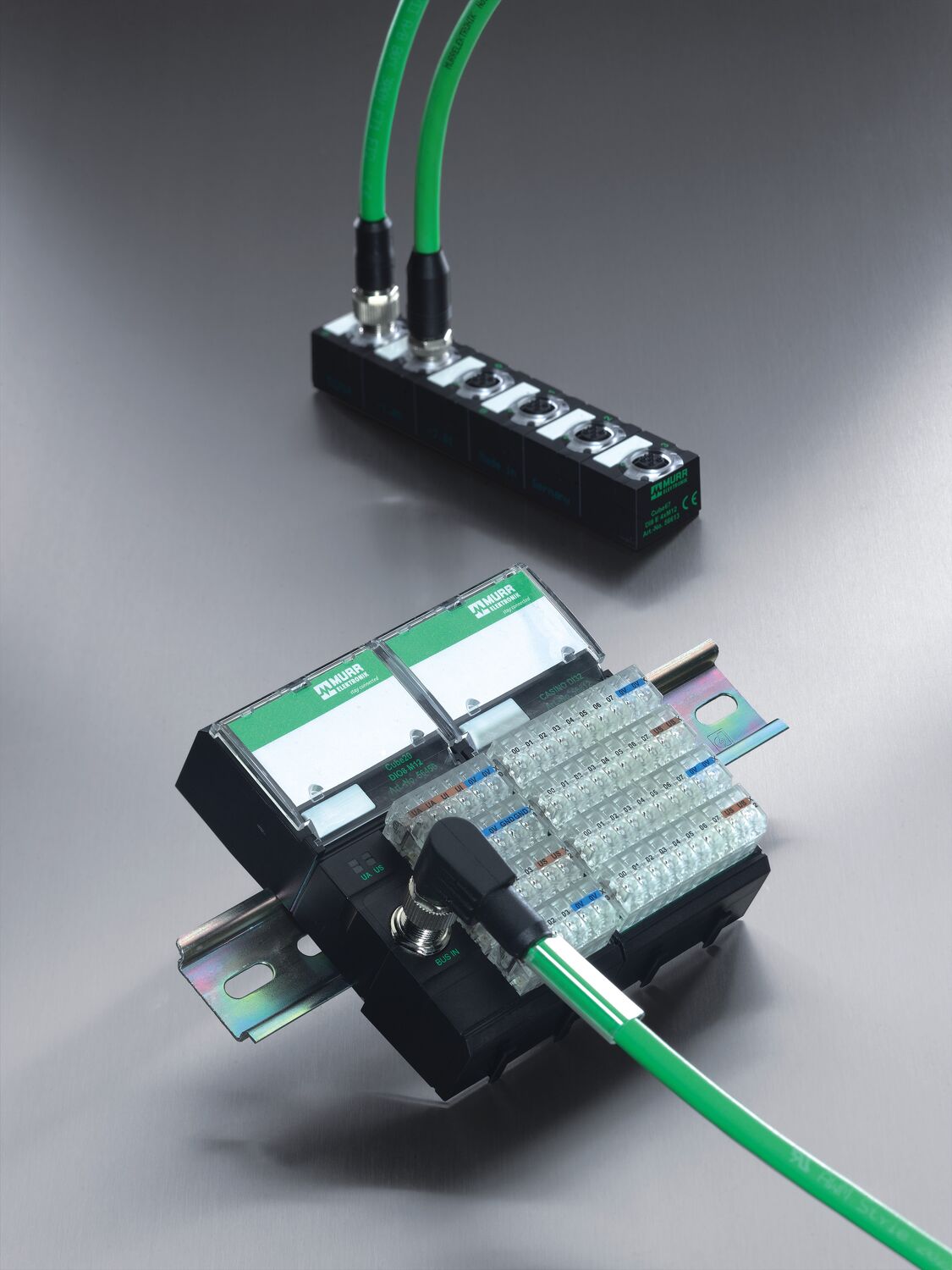

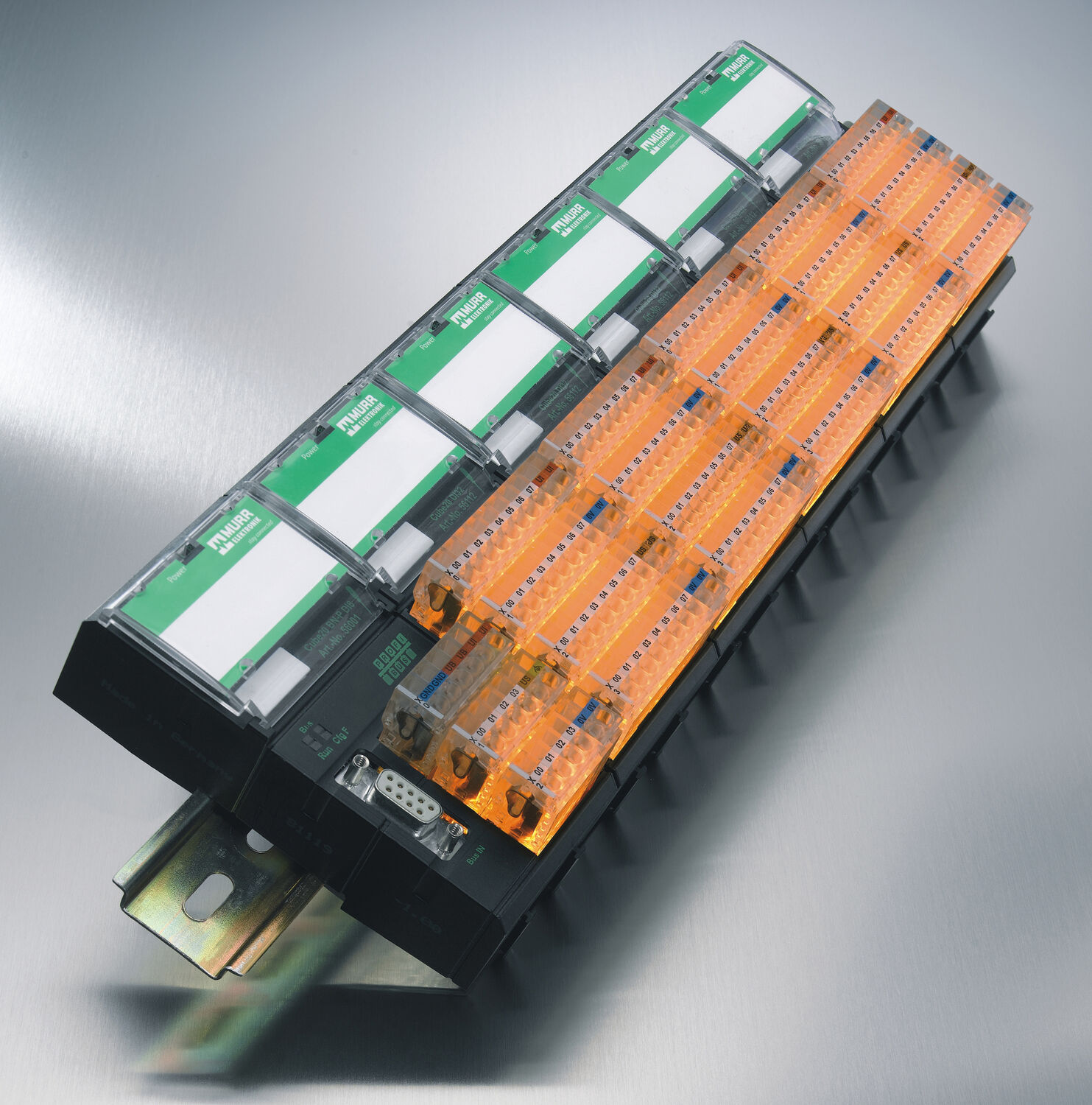

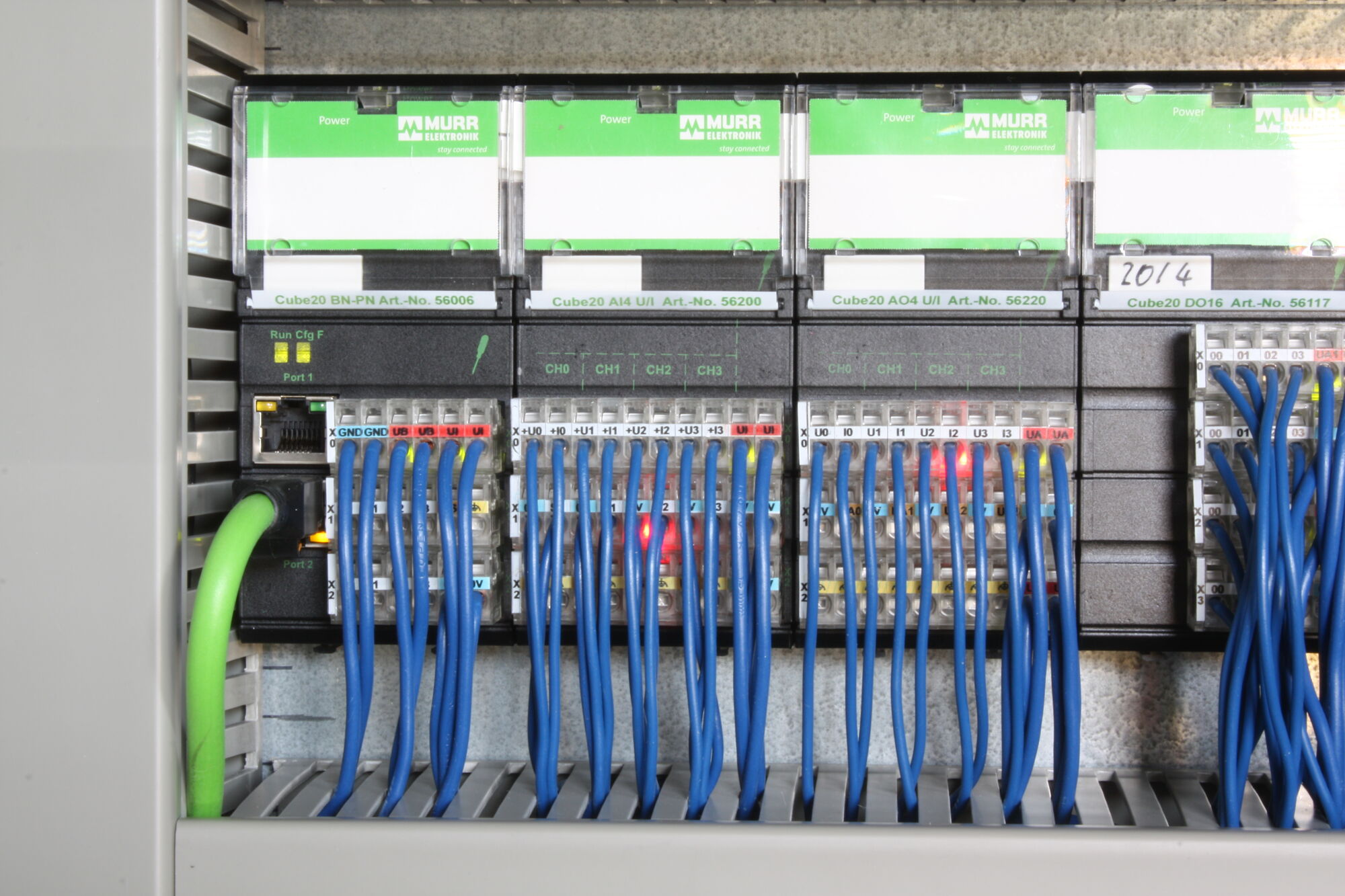

Cube20 is a centralized IP20 I/O station with modular function modules and the ability to connect direct to Cube67 modules. The compact modules have a high signal installation of up to 32 channels in one module. This significantly reduces the wiring efforts in the cabinet. Up to 488 I/O points in a width of only 90 centimeters helps to save space in the cabinet.
Installation concepts based on Cube20 and Cube67 can be easily integrated into higher level fieldbus systems with a single bus node. Machine modules can remain the same across multiple platforms and adapted to different protocols by swapping only the one bus node as needed for a different protocol.
Machines and systems often differ only in their options. With the Machine Option Management (MOM), hardware and software are configured once, based on a standardized maximum configuration. To simplify setup, the MOM recognizes the option installed and activates the modules required.
